Scope of application and characteristics:

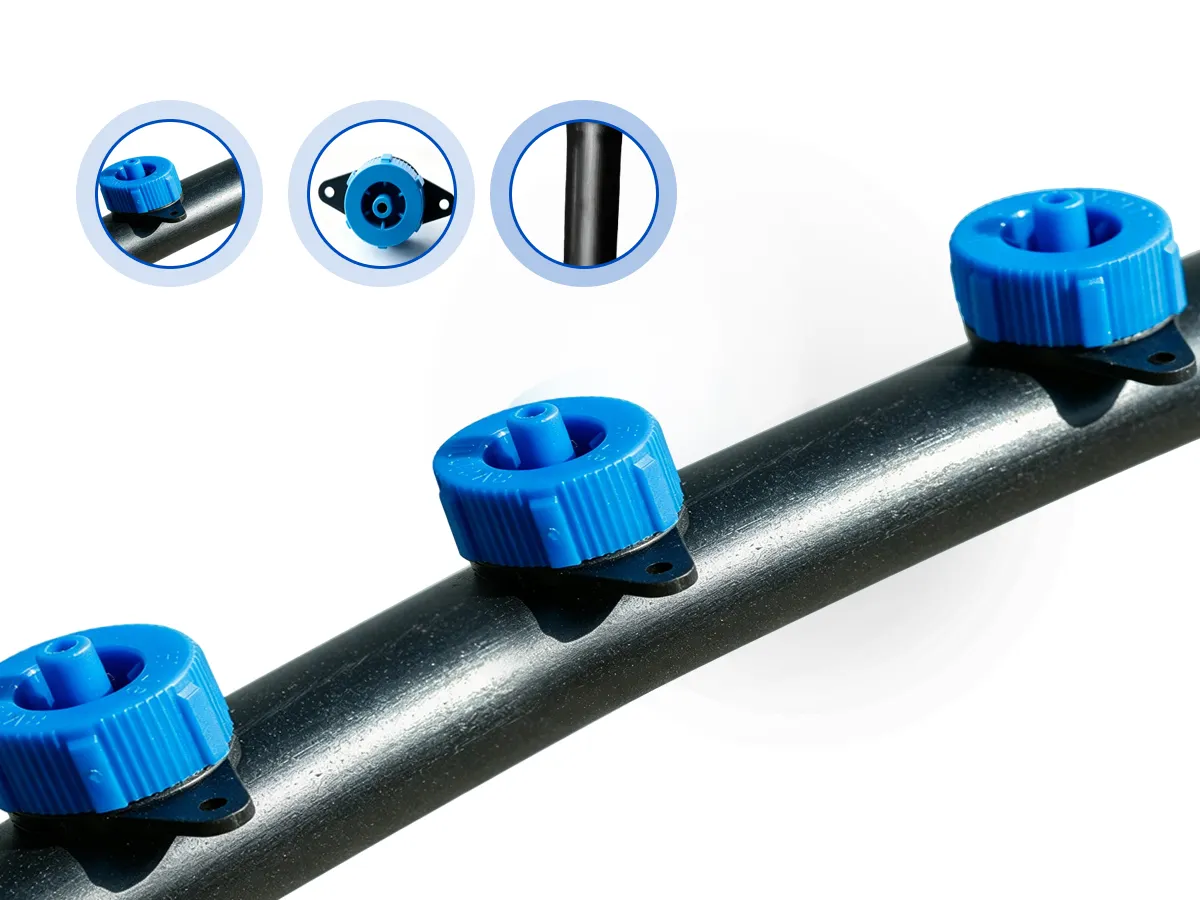

1.The Pressure-Compensating Drip Pipe is equipped with a built-in flat compensat- ing dripper that contains a highly elastic diaphragm. This diaphragm automati- cally adjusts to maintain a constant flow rate even when inlet pressure varies.
2.Pressure compensation range: 0.08-0.35 MPa. It has excellent adaptability to uneven terrain and is particularly suitable for drip irrigation in mountainous and hilly regions.
Technical parameters：
Nominal Pipe Diameter (mm) | Nominal Wall Thickness (mm) | Working Pressure Range (MPa) | Rated Flow (L/h) | Emitter Spacing (mm) | Flow Regime Index (%) | Laying Length (m) |
16 | 0.5 - 1.2 | 0.08 - 0.35 | 1 | 100 - 1000 | ≤0.05 | 150 - 450 |
1.6 | ||||||
2.6 | ||||||
3.8 |
